Best Lighting for Auto Detailing: What Paint Correction and Ceramic Coating Demand

By Ben from HEXLED Lighting Team

Paint correction in a dim detailing bay is guesswork. You finish a panel, walk it out into the sun, and there they are. Holograms. A long swirl your halogen drop light missed. A dust nib trapped under the ceramic. The bulk of the work was fine. The lighting failed you.

Auto detailing lights are not a budget item to negotiate down. The light is the inspection tool. Our HEXLED team has spent over 13 years specifying lighting for everything from single-bay home detail shops in Tampa to 6-bay ceramic installers in Scottsdale, and the pattern is the same. The shops that nail the lighting standard at install time stop redoing panels six months later. This guide walks through what paint correction and ceramic coating actually demand from a fixture, what numbers to lock in before you buy, and how the geometry of a hex grid changes what you can see on a clear coat.

For shop-grade kits sized to typical bay footprints, browse our car detailing lights collection.

Why Auto Detailing Demands a Different Lighting Standard

Most garage lighting articles use a single number for brightness, but detailing is not most garages, and treating the two as the same is the first reason a paint correction shop ends up redoing panels six months after install. A garage is a parking space, sometimes a DIY zone, sometimes a workshop. A detailing bay is a visual inspection lab where a 0.5 micron clear coat scratch is the unit of work, and the lighting fixture is the single instrument the technician uses to judge that scratch.

That changes three things at the spec level. First, brightness, because detailing sits at the top of the IES task-space range and not the middle, which means a fixture that handles a workshop will under-deliver on a paint correction bay. Second, color accuracy, since you cannot reliably judge a swirl mark, a hologram, or a coating high spot if the light source is rendering metallic gray as a flat undifferentiated tone. Third, distribution. A single hot point above a vehicle gives you one angle of inspection, and paint correction needs many angles read from several positions around the panel.

The Illuminating Engineering Society publishes recommended practice ranges for industrial task spaces in its lighting standards library. Pro detailing falls in the upper third of that range, well above general workshop and far above residential garage.

The Four Numbers to Lock In Before You Pick a Detailing Light

1. Lumens per square foot, not watts

Raw energy draw tells you almost nothing about how much actual light is going to land on the panel you are about to compound. Modern LED fixtures run 110 to 130 lumens per watt, while older halogen ran 15 to 25 lumens per watt and even metal halide fell well short of LED, which is the reason two fixtures with the same power draw can deliver wildly different brightness on the hood underneath them.

Use lumens per square foot for the room you actually have, not a generic recommendation pulled from a parking-garage spec sheet. Our HEXLED team uses a four-tier brightness system pulled from IES task-space ranges, and the gap between tiers is bigger than most buyers realize until they install at the wrong level.

A 14 ft by 22 ft single-bay detailing studio is 308 square feet, and at 240 lumens per square foot, toward the lower-middle of the pro range, that bay needs roughly 74,000 lumens of usable ceiling output to land solidly in the inspection-ready zone. A 23-grid hex kit lands in that zone, two 11-grid kits get close together, and a single halogen drop light is not in the conversation at any honest level.

2. CRI above 85, not just "high CRI"

CRI rates how accurately a light source renders color compared to natural daylight, and a score of 100 is perfect, with anything below 80 falling into "industrial" territory where color fidelity is not really a design goal. Most cheap LED panels list CRI 80, which is the practical minimum any manufacturer will use to call something "high CRI" in a marketing line.

CRI 80 is fine for parking. It is not fine for paint correction. In a CRI 80 bay, dark blues drift toward gray, deep reds flatten, and the subtle interference flare of a hologram on a black clear coat reads as uniform gloss instead of the curving streak that should give it away. A CRI above 85 pulls that detail back, the mirror starts telling the truth again, and the technician stops missing defects they were never going to catch under cheaper light.

3. Color temperature, fixed at purchase

Color temperature, measured in Kelvin, is set at the factory and is not a software setting you can swipe through on a phone app, so you pick the Kelvin value when you buy and once the kit is mounted on the ceiling that value does not change. It is the single spec buyers most often regret skipping research on.

For detailing work, default to 6500K. Drop to 5000K only if you find 6500K clinical or the bay doubles as a general workshop. Below that, around 3000K to 4000K, the bay reads warm and yellow, which is great for a barber chair but bad for paint inspection because the warm cast biases every color reading you take. Above 6500K, you start to push toward blue-white that flattens reflected color and washes the depth out of dark paint.

5000K reads as bright noon daylight. 6500K reads as overcast daylight, which is the inspection condition most detailers prefer because it removes the directional cast of a sunny sky and produces a flatter, more honest reading across the panel. Our team specs 6500K for most pro detailing kits and 5000K for hybrid bays that also serve as general workshop, and the rule we tell buyers is to pick the temperature your eyes inspect under in the field.

4. Flicker-free output and even distribution

Cheap LED drivers cycle at 100 Hz or 120 Hz, and your eyes catch the flicker on long shifts as a slow accumulation of fatigue and dull headache pressure that you do not consciously notice until you step outside. Look for a flicker-free spec on the driver. Detailers run 8 to 10 hour shifts under these lights, and the eye tax of cheap drivers adds up across a week of polishing into measurable productivity loss.

Even distribution is the other half of the equation, since paint correction needs many angles read across a panel rather than one hot point dropped from a single fixture. A single high-output shop bulb mounted above a hood casts crisp shadows that hide swirls along the shadow line, and a grid of smaller emitters spread across the whole ceiling fills those shadows in from multiple directions. That is the geometry argument for hex panels, ceiling grids, and linear frames over single drop lights, and it is why production shops moved away from spot fixtures over the last decade.

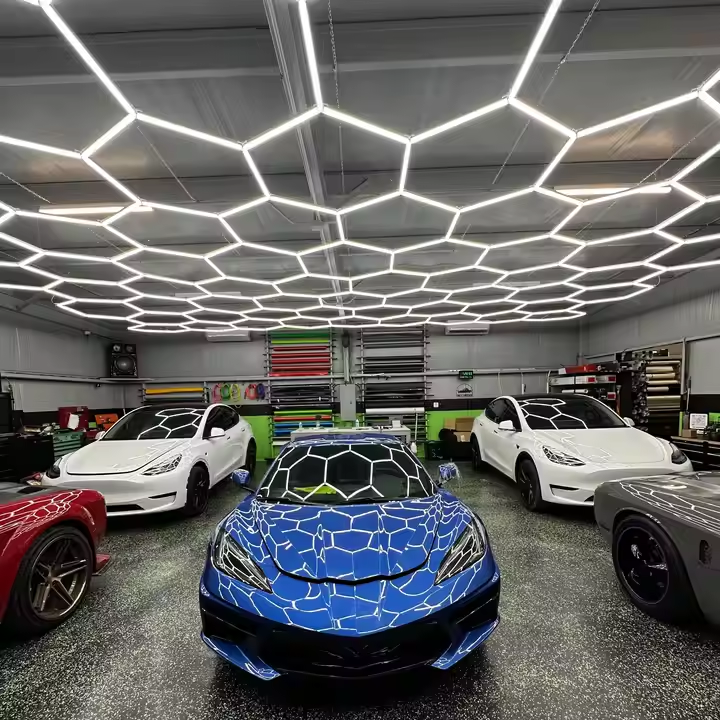

Layout: Where Detailing Lights Belong

Layout matters more than total lumens past a certain point. 80,000 lumens dumped into one corner of a 400 sqft bay is worse than 60,000 lumens spread evenly across the ceiling. Three rules from the customer installs we've seen.

1. Ceiling-mount, edge-to-edge. Cover the full bay footprint, not just the center. The technician walks around the vehicle. Light needs to follow.
2. Mount height 10 to 13 ft for surface-mount kits. Below 10 ft crowds head clearance and creates hot spots. Above 13 ft, lumens fall off fast and you lose the wash you paid for.
3. No single point source. One big square panel above the hood throws the same harsh shadow a halogen drop light does. The point of a grid is to break the shadow up.

Many home detailers run in a converted garage, and the same layout logic applies. For a full walkthrough of spacing and grid placement, work through our hexagon lights layout guide before you commit to a kit size. Most home detail builds land on a 23-grid for a two-car footprint.

Larger pro shops sometimes split a single bay across two smaller kits to get even better distribution, since the goal is shadow-free wash and that goal is easier to hit with multiple kit centers than one oversized panel. A 23-grid plus an 11-grid in a 600 sqft bay can outperform a single oversized kit if the geometry of the ceiling has obstructions like beams, lift posts, or exhaust runs that break the line of a wider grid.

Paint Correction-Specific Setup

Paint correction work is mostly about seeing what you missed, because the panel itself is rarely the problem and the bottleneck is whether the technician can read the defect under the light they have. A two-stage correction starts with compound, then polish, then refinement, with a wipe-down and inspection between each pass that decides whether the technician moves on or doubles back. Bad lighting means you either over-polish, which thins the clear coat past safe levels, or under-polish, which lets defects through to QC and the customer.

Our HEXLED team has installed kits in three Texas paint correction shops that run a Rupes-heavy workflow, and the technicians describe the same pattern every time we follow up after the install. The first hour after a lighting upgrade, they slow down noticeably, because they start seeing scratches they would have missed under the old fluorescent tubes and have to decide whether each one is a buff-out or a re-do candidate. After a week, the workflow speeds back up to baseline, and the difference is that they are now catching the defects on the first wipe-down rather than discovering them on the third pass after the customer has already paid.

Ceramic Coating Application Lighting

Coating work has a different lighting need than correction does, because what you are watching for is timing rather than depth and the visual cues change minute by minute during the cure window. The fluid is glassy when applied, then turns matte as it cures, then comes back to gloss after the level-out window closes and the cross-linking starts to set. You are watching for three things during application, and missing any of them is a callback waiting to happen.

• High spots. Coating that did not level. Under good ceiling output, a high spot looks like a faint stripe of brighter gloss. Under bad lighting, it is invisible until cure.
• Streaks. Crosshatch application errors. They show as parallel lines under a wide grid. They hide under a single point source.
• Dust nibs. Particles that landed in the wet coating. Brighter, daylight-balanced light at 6500K makes them stand out against the gloss.

Coating windows are short. Most consumer-grade ceramics flash in 30 to 90 seconds and need wipe-down inside 1 to 5 minutes depending on shop temperature, ambient humidity, and the specific product chemistry the technician is laying down on the panel. There is no time to drag a halogen drop light around the vehicle to re-inspect each panel, and the ceiling fixture is the only light source close enough to the work to keep up with the cure timer.

Workshop Lights vs Detailing Lights: Which Do You Need?

Detailing bays often share space with general workshop tasks, and the kit you choose changes substantially if you also wrench on the vehicle, weld, do bodywork, or run any other shop process under the same ceiling. The spec gap between the two roles is the source of most "my lights are too dim" complaints from buyers who picked the cheaper workshop kit.

Pure detailing wants the upper range of brightness, the higher CRI above 85, and the daylight-balanced color temperature at 5000K or 6500K. General workshop tolerates lower CRI down to 80, lower brightness in the 90 to 130 lumens per square foot tier, and warmer color around 4000K. For multi-purpose bays that handle detailing plus general workshop tasks, a hex shop-light kit specced for detailers steps up over standard workshop kits without overshooting into pure paint-correction spec.

The rule of thumb our team uses is simple, and it tracks with what we see across customer follow-ups. If you are correcting paint less than once a month, the workshop spec is fine. If correction is the core service, the detailing spec earns back the price difference in fewer redos within the first quarter of operation. We have run the math on three retrofits in the last 18 months, and the payback window on the upgrade has landed between 4 and 9 months in every case, with the shops doing the heaviest correction work landing closer to the 4-month end.

What Our HEXLED Team Has Learned After 13 Years

Three patterns repeat across every detailing install our HEXLED team has handled.

One. Plastic-housing kits warp under sustained heat, and customers have pulled four sets of plastic-bodied honeycomb fixtures out of Phoenix detailing shops in the last 18 months because the polymer simply could not handle the ambient summer load. They looked like melted candy by the time they came down. Aluminum housings handle the heat properly because the metal sheds thermal load instead of softening under it, and that matters in a bay with poor ventilation, a vehicle running for cure time, and hot summer ambient temps that push well past 100 degrees.

Two. The "three-pin grounded" detail matters more than most buyers realize when they spec a kit, because the third pin is what keeps the electrical path safe when a shop also runs power tools, lift motors, or arc welders on the same panel. Two-pin connectors loosen over a few seasons, especially in shops where forklifts and lift posts move air and vibrate the ceiling. Our reinforced snap-lock connectors stay seated, and that is one less callback for the customer's electrician six months later.

Three. CRI is the cheap upgrade buyers skip and regret. A jump from CRI 80 to a CRI above 85 adds a fraction to fixture cost, and it pays back the first time a redo claim does not come in from a customer who saw a hologram in afternoon sun. Across the hexagon lights collection, our team sizes detailing kits to the bay footprint and ceiling clearance, not a one-size-fits-all template, and the CRI step is always part of that conversation when we walk a buyer through their options.

Pre-Install Checklist

Before you order any detailing light, walk through this list. If you want the mounting steps in detail, our how to install hexagon lights guide covers the hardware and ceiling prep.

1. Bay footprint, in feet. Measure the actual work zone, not the property line.
2. Ceiling height. Surface-mount kits want 10 to 13 ft. Above that, drop the panel to working height with the adjustable suspension kit (3.3 ft or 9.8 ft / 1 m or 3 m steel cables) or accept lumen drop-off.
3. Existing power. A plug-in kit needs a standard grounded ceiling outlet within reach. Larger kits with two or more power inputs need a hardwired connection, so have a licensed electrician confirm the circuit.
4. Color temperature target. 6500K for pure inspection. 5000K for hybrid bays. Locked at purchase.
5. CRI target. Above 85 for paint correction and coating work. The cheaper CRI 80 panels are fine for wash and sealant only.
6. Obstructions. Door tracks, exhaust runs, lift posts, fans. Map them before sizing the kit.
7. Whether you also need general workshop output. If so, lean to a hex panel system over a single high-bay light.

FAQ

How many lumens does a typical detailing bay need?

For a single-bay pro detailing space of 240 to 320 sqft, plan for 200 to 360 lumens per square foot, which works out to roughly 50,000 to 115,000 lumens total. Our HEXLED team typically lands on a 14-grid or 15-grid kit for that footprint, with a 23-grid for oversized or double-bay spaces.

What color temperature is best for paint correction?

6500K is the standard for most pro detailing work because it reads as overcast daylight, which removes the directional cast of warmer light. 5000K is a close second and works well for hybrid bays that also handle general workshop tasks. Below 5000K starts to drift warm, which hides swirl marks.

Is CRI 80 good enough for detailing?

No. CRI 80 is acceptable for wash and decontamination work but unreliable for paint correction and ceramic coating inspection. Target CRI above 85. The price difference is small. The QC difference is large.

Can I use the same lights for detailing and general garage work?

Yes, if you spec to the higher standard. A grid sized for pro detailing also handles wrenching, woodwork, or any other shop task. The reverse does not hold. A grid spec'd for general workshop tasks will not give you the brightness or CRI you need for correction.

What ceiling height do hexagon detailing lights need?

Surface-mount hex kits perform best at 10 to 13 ft ceiling height. Below 10 ft, you may see localized hot spots near each panel. Above 13 ft, lumens fall off rapidly and you should plan for suspension hardware or upgrade kit size to compensate.

Are hexagon LED lights bright enough for ceramic coating work?

Yes, when sized correctly. A 14-grid or 15-grid kit in a 300 sqft bay delivers the brightness and 6500K daylight balance needed to spot high spots, streaks, and dust nibs before cure. Undersize the kit and you lose the visibility advantage.

How long do these lights last under daily shop use?

Quality LED hex panels rate at 50,000 hours of useful life. At 10 hours of shop use per day, six days a week, that is roughly 16 years of service life before output drops below useful levels. Plastic-housing knockoffs warp years before they hit that hour count.

Where to Go from Here

If you have an active detailing operation and want a kit specced for paint correction or ceramic coating workflow, our team can help size by bay footprint, ceiling height, and the type of work you run. The full selection is in our lights for detailing work collection, with kits from 11-grid up through 39-grid.

Pick the brightness for the work you actually do. Pick the CRI for the panels you actually inspect. Mount the grid so it covers the bay, not just the center. That is the install most detailers wish they had done the first time.
