Best Workshop Lighting: What Woodworkers, Mechanics, and Makers Need to Know

By Ben from HEXLED Lighting Team · Updated July 2026

A bad workshop ceiling makes everything harder. The drill bit you sharpened looks fine until you bring it to the bench grinder and see the bevel was crooked the whole time. A weld bead that read clean under your shop floods turns spotty in daylight. You squint over a router fence at 4 p.m. in February because the two T8 strips above you give up an hour before the sun does.

Workshop lighting is not a decor decision. It is a precision problem, and it is one of the few shop upgrades with a published standard behind it. This guide uses those published numbers to work out what your shop actually needs, then shows what it takes in real fixtures to get there.

How Much Light a Workshop Actually Needs

Workshop lighting is not one number. It depends on how precise the work is, and there are published figures for each level. The table below pairs the standard with what it takes to hit it, using a 0.55 delivery factor explained in the next section.

Swipe the table sideways →

The serious-workshop row is where most home shops should be. If you are turning wood, pulling an engine, welding, or doing anything you would be annoyed to redo, the IES range for medium bench and machine work is 50 to 100 footcandles. Designing to the top of that range is not excessive — it is what a professional service bay is built around.

The precision row cannot be solved from the ceiling. The IES table listing 200–500 fc for fine bench work carries a footnote saying those levels are “obtained with a combination of general light plus specialized supplementary lighting.” Nobody hits 300 fc across a whole shop with overhead fixtures — the wattage and the glare both get unreasonable. Build a high-output ambient layer, then add a task light at the bench where tolerance matters.

Footcandles vs Fixture Lumens: The Unit Everyone Gets Wrong

Lumens measure what a fixture emits. Footcandles measure what actually reaches your bench. One footcandle equals one lumen falling on one square foot of surface.

Manufacturers advertise lumens. Lighting standards are written in footcandles. The bridge between them is a delivery factor covering beam spread, wall and ceiling absorption, mounting height, and lens dirt. It is not a single universal number — it depends on your room:

Swipe the table sideways →

One caution worth stating plainly: do not stack the worst case on the worst case. If you design to the top of the footcandle range and assume the lowest delivery factor, you are counting the same safety margin twice and will end up over-specified. Pick the factor that matches your room, then choose your footcandle target.

This is also why lumen-per-square-foot rules of thumb float around the internet contradicting each other — most of them silently mix the two units and skip the room entirely.

Why Most Shops Fall Short, Even With New LEDs

Walk into ten home workshops and eight have the same setup: two or three 4 ft LED shop lights screwed to the joists, a bare bulb over the bench, maybe a clamp light at the lathe. The owner swapped the fluorescents two years ago, called it done, and still says the shop feels dim.

The math explains it. A typical 4 ft LED strip puts out 4,000 to 5,000 lumens. Three of them in a 400 sqft bay is 12,000 to 15,000 fixture lumens, which lands at roughly 17 to 21 footcandles at the bench. That is less than half of what IES asks for medium bench work. To reach the serious-workshop tier with those strips you would need eleven to eighteen of them.

But raw output is only half the problem. Two other published requirements get ignored entirely:

Uniformity. IES-derived guidance is that with uniform general lighting, the dimmest point should be no less than two-thirds of the average. Two strips 8 ft apart leave a dim trench directly under the bench, where the operator stands. That layout fails the ratio no matter how many lumens you throw at it.

Vertical illuminance. The IES automotive service figures call for 30 fc average measured vertically, in a 15 to 60 fc range — not just on the floor. That is the light hitting the side of a vehicle, the face of a cabinet, the back of an engine bay. Downward-facing strips are poor at this. Light arriving from several directions across the ceiling is good at it.

Targets by Workshop Type

Our customers’ shops are spread across North America — single garage bays, detached shop buildings, and commercial workspaces — and the same few uses come up constantly. That matches the national picture: in a CRAFTSMAN survey of 2,004 US adults, the most common garage activities were automotive maintenance and home renovation projects (46% each), followed by woodworking (41%) and furniture restoration (26%).

Automotive Repair and Restoration

The most common garage workshop in America, and the one with the clearest published target: 50 fc average and up to 100 fc horizontal, with 30 fc average vertical. That vertical figure is the one people miss. Light the floor only and the moment you raise the hood, the hood shades the entire engine bay. For a 24 ft × 22 ft two-bay space (528 sqft), plan for roughly 71,000 to 95,000 fixture lumens across at least two switched zones.

Woodworking

IES splits woodworking into rough sawing and bench work at 20–50 fc and fine bench work, sanding, and finishing at 50–100 fc. Any shop that finishes its own work belongs in the upper band. Sawdust adds a maintenance factor: it settles on lenses and quietly costs output over a season, turning clean white light into a yellow haze. Smooth-lensed aluminum panels wipe down faster than ribbed or louvered fixtures — budget a quarterly wipe to keep your design numbers honest.

General DIY and Home Repair Bench

Tied with automotive as the most common use. This is the catch-all bench where you fix a lamp, rebuild a mower carburetor, cut trim, and assemble flat-pack furniture. Published general workshop guidance lands at 30–75 fc; aim for the upper half so the bench still works when the job turns fiddly.

Metal, Welding, and Fabrication

IES puts general welding at 20–50 fc, but that figure is misleading on its own. The arc is far brighter than any fixture, so the real design goal is keeping ambient light high enough that your pupils do not have to re-adapt after every weld. Layout marks, scribe lines, and weld inspection all sit in the 50–100 fc band. Slag and grinding sparks land on lenses, so choose flush sealed-lens fixtures and mount high where the ceiling allows.

Specialty Benches

Machining, reloading, electronics, and detailing all push into the precision tier and all need a task light, not just a better ceiling. Two useful reference points: IPC-A-610, the electronics assembly acceptability standard, calls for a minimum of 1,000 lux (about 93 fc) at the surface for visual inspection, at 3,000–5,000 K. And paint inspection work runs into the hundreds of footcandles. If this is your shop, build the ambient layer to the serious-workshop tier and add dedicated task lighting on top.

Shared-Use Garages

Roughly 63% of American home gyms are in a garage, and most workshop bays double as parking. Mixed use is the norm, not the exception. The practical answer is zoned switching rather than a compromise brightness: full output over the bench, a lower zone for parking and general movement.

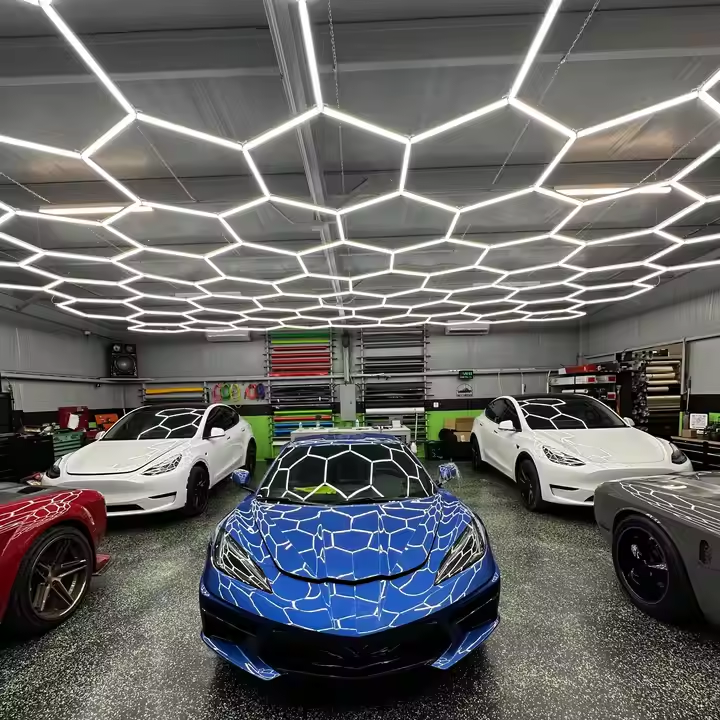

Why Modular Hexagon Grids Suit Workshops

The case for a modular grid is not that hexagons look good on a ceiling, although they do. It is that a distributed grid is the shape that satisfies the three requirements above at the same time.

It solves uniformity by geometry, not by wattage. The two-thirds-of-average rule is a spacing problem. Fixtures spread across the ceiling plane produce overlapping pools with no trench between them. Adding lumens to a two-strip layout raises the average and the minimum together — the ratio does not improve. Spreading the same lumens across a grid does improve it.

It produces vertical illuminance as a side effect. Light arriving from several directions lands on vertical surfaces: the side of a car, the face of a cabinet, the inside of an engine bay. This is the requirement a single overhead row structurally cannot meet.

It puts light where your body is not. At a bench you stand between the ceiling and the work. One fixture centered above you guarantees your own torso shades the task. Two fixtures offset to either side fill each other’s shadow.

It scales without a redesign. Shops change. A modular system lets you add hexagons to an existing run instead of re-planning the ceiling, which matters when the bench moves or the shop takes over another bay.

It fixes color rendering, which output alone does not. High CRI is what lets you match a stain, tell black wire from very dark blue, judge a weld, or read a solder joint. Our panels are rated above 90 CRI.

None of that is unique to a hexagon in particular — a square or linear grid does the same job. The hexagon is simply an efficient way to tile a ceiling plane from a single connected system, which is why our hexagon shop lights are built as one continuous grid rather than a set of separate fixtures.

Color Temperature and CRI

Warm light — the 2700K to 3000K range built for living rooms — works against you in a shop. It shifts everything toward yellow and red, which makes stain colors, dark wire insulation, and metallic flake harder to read.

• 5000K Cool White for general shop work. Daylight-balanced enough for accurate color reading, comfortable over a long session.
• 6500K Daylight where you want a crisper, cooler look — detailing bays, paint inspection, and shops that read as clinical on purpose.
• 4000K Neutral White where the shop doubles as a living space and you want it to feel warmer off-hours.

Sizing a Kit to Your Shop

Rather than list a target and leave you to guess whether a kit reaches it, the table below runs the math the other way: it shows what each kit actually delivers at the bench in a typical shop (0.55 factor). Every rated output is the published figure for that kit. A two-car garage — 65% of new US homes have one — is typically about 20 × 20 ft.

Swipe the table sideways →

The first three rows land inside the 75–100 fc serious-workshop band; the three-bay layout sits at the very top of it. If your bay is weekend-DIY rather than production, drop a tier: a 400 sqft shop at 30–50 fc needs 22,000 to 36,000 lumens, which is 8-grid to 11-grid territory. And if your shop has dark walls or a high ceiling, shift to the 0.45 factor and size up accordingly.

Not sure where your space lands? Run your dimensions through the lumens calculator, or see the hex light layout guide for per-bay spacing, including drop-ceiling and exposed-joist cases. If the bay also stores a car, our hexagon garage lights cover the same ceiling for both jobs.

Install Basics

Three things to settle before you order. The installation guide covers the mechanics in full.

• Power. Smaller kits plug into a standard grounded outlet; larger systems come hardwired and need an electrician. Check the product page for your kit and budget accordingly.
• Mounting. Surface-mount to joists or drywall works for 8 to 12 ft ceilings. Above that, suspend the panel closer to the work plane so you are not losing output to distance.
• Zoning. Put the bench grid and the parking area on separate switches. It is the cheapest way to make a mixed-use bay work properly.

FAQ

How many footcandles should a workshop have at the bench?

For a serious workshop, 75 to 100 footcandles at the work surface. That comes from the IES range of 50–100 fc for medium bench and machine work, and 50 fc average with a 25–100 fc range for automotive service areas. Weekend DIY use is fine at 30–50 fc. Precision bench work calls for 200–500 fc, but IES specifies that level is reached with general lighting plus a supplementary task light, not from the ceiling alone.

How do I convert footcandles into lumens I can actually shop for?

Multiply total fixture lumens by a delivery factor, then divide by floor area in square feet. Use 0.65 for a bright, low, open shop, 0.45 for a dark or high one, and 0.55 for a typical garage. Running it backwards: target footcandles divided by the factor, times square footage, gives the fixture lumens to buy. A 400 sqft bay at 75 fc and 0.55 needs roughly 54,000 lumens; at 100 fc, about 72,000.

Is 5000K or 6500K better for a workshop?

5000K Cool White is the safer default for general shop work, and 6500K Daylight gives a crisper, cooler look favoured in detailing and inspection bays. Neither one makes fine work measurably easier on its own — illuminance, CRI, and uniformity do that. Pick the colour you want the room to have, then make sure the light level and colour rendering are right.

Why does fixture layout matter as much as total lumens?

Because two published requirements are about distribution, not output. Uniformity guidance holds that the dimmest point should be at least two-thirds of the average, and automotive service figures call for 30 fc average measured vertically. A single row of strips fails both regardless of wattage, because adding lumens raises the average and the minimum together without improving the ratio.

Do hex panels work on an exposed joist garage ceiling?

Yes. Surface-mount panels attach directly to the bottom edge of the joists, or to a thin mounting bar spanning two joists. No drywall or finished ceiling required. Most of our 11-grid and larger kits ship with mounting hardware that handles either case.

Can workshop hex lights be dimmed?

Our dimmable line has built-in 3-step dimming — 30%, 60%, 100% — cycled by tapping a standard wall switch. No external dimmer or controller is needed, and it is not compatible with dimmer sliders or smart switches. Standard kits run at full output only, and dimming cannot be added later.

Sources

• Illuminance recommendations for machine shops, woodworking, welding and motor-vehicle garages — IES Lighting Handbook industrial tables. Illuminating Engineering Society
• Automotive service area: 50 fc average horizontal (25–100 fc) and 30 fc average vertical (15–60 fc) — IES Lighting Handbook, 10th edition, as reproduced in Orion Energy Systems’ IES reference tables. Note: the Energy Trust of Oregon / Lighting Design Lab guide prints the vertical range as 15–30 fc; every other range in these tables spans half to double the average, which supports 15–60 as the intended figure.
• Task illuminance ranges and the uniformity rule that the minimum should be at least two-thirds of the average — CCOHS Lighting Ergonomics, citing the IESNA Lighting Handbook.
• Minimum illumination for carpenter shops on construction sites, 10 fc — OSHA 29 CFR 1926.56, Table D-3. This is a construction-industry standard and does not apply to private home workshops.
• Garage activity participation figures — CRAFTSMAN “Take Back Your Garage” survey of 2,004 US adults, conducted by Atomik Research, 2022.
• Two-car garages on 65% of newly completed US single-family homes — NAHB analysis of US Census Bureau Survey of Construction, 2024.
• Kit wattage, lumen output and CRI figures are the published specifications on each product page, linked in the sizing table above.

Bottom Line

A real workshop deserves real light, and unlike most shop upgrades there is a published number to aim at. Target 75 to 100 footcandles at the bench. In a typical garage that means roughly 135 to 180 fixture lumens per square foot — about 54,000 to 72,000 lumens for a two-car bay. Spread it across the ceiling rather than down the middle so the uniformity and vertical-light requirements are actually met. Run 5000K or 6500K with high CRI. Then add a task light at the one bench where tolerance matters.
