A recessed can leaves shadows. A linear strip lights a line. A flush mount lights a circle. Most ceilings in 2026 are still wired the way they were in 1996, and the result is what every garage owner notices the second a lug nut rolls into the unlit corner. The light is uneven.
Modular hexagon ceiling lights are not a fashion choice. They are a coverage geometry that does what individual fixtures cannot, which is light a ceiling as one continuous surface instead of three or four discrete points. Our team has more than 13 years in the lighting industry, and across garages, home gyms, barber shops, and detailing bays the pattern that surfaces every time is the same. Owners do not want bigger fixtures. They want one ceiling that lights evenly.
This guide walks through what modular hexagon ceiling lights actually are, why people are pulling out their flush mounts and recessed cans to replace them, and how to plan a ceiling install you will not redo three years later. It covers our hexagon lights range, including the standard fixed-output, dimmable, and large hex systems. The lineup starts as small as 3-grid hexagon light kits and runs up to 39-grid kits, and custom systems can go larger, designed around the size of your space.
The short answer
Modular hexagon ceiling lights spread light across the whole ceiling plane instead of a few points. A 14-grid kit spans about 13.1 ft by 7.9 ft with an open framework of LED tubes, puts out 37,620 to 41,040 lumens, and is rated at CRI above 90 in the color temperature you choose (3000K to 6500K). That even overhead coverage is what traditional fixtures cannot match.
In this guide:
- What modular hexagon ceiling lights actually are
- Why people are replacing traditional fixtures
- Hexagon lights vs standard fixture categories
- Where modular hex lights work best
- Sizing and layout planning
- Installation and wiring notes
- Frequently asked questions
What "Modular Hexagon Ceiling Lights" Actually Means
A modular hexagon ceiling light is not a single fixture. It is a set of straight LED tubes joined by connectors into an open honeycomb framework that spans the ceiling. Each tube has its own driver, and the tubes share electrical and structural connections through reinforced snap-lock connectors, so a 14-grid kit is wired and mounted once and treated as one fixture from the user's side.
Standard kits run from 3 grid (8.2 ft by 3 ft) up through 39 grid (17.4 ft by 16.4 ft). The geometry is the point. Hexagons tile a ceiling without gaps, so the lit tubes are spread evenly across the whole area instead of bunched into rows, and there is no dark band where coverage falls off. That is a different feature class from a row of LED tube fixtures or a grid of recessed cans, both of which leave gaps the eye reads as darker zones.
The HEXLED system uses aluminum housings with a diffused cover, 3-pin grounded snap-lock connectors, and a 17.5 inch (44 cm) tube length across the standard line. The build is what determines whether the tubes stay seated through years of thermal cycles, and it is the failure point cheaper plastic-housing kits hit first.
Why People Are Replacing Traditional Ceiling Fixtures
We get asked some version of this question every week. Why pull a working recessed can layout to install hex lights? The answer is rarely about aesthetics, although the visual upgrade matters. It comes down to three failures of traditional fixture categories.
The first is coverage. A 4-can recessed layout in a 2-car garage typically delivers usable brightness directly below each can and a measurable drop-off between them. The Illuminating Engineering Society publishes recommended brightness levels for residential and task spaces in its lighting standards library, and most retrofitted garages fall well below the task-space minimum despite "having lights." The fixture works. The room is still dim.
The second is color. Older flush mounts and many residential recessed cans run warm bulbs (2700K to 3000K) chosen for living-room aesthetics, not for inspection work. A 6500K daylight fixture reads cooler and reveals more detail in finishes, paint, and metal surfaces, which is why pro shops moved off warm fixtures decades ago.
The third is shape. A round circle of light from a flush mount and a long strip of light from a tube fixture both project a geometry onto the floor. Vehicles, workout equipment, and barber chairs do not match that geometry. The fixture is illuminating the wrong shape. A hex grid lights the actual rectangle of the space below it, which is the shape the room is built for. If you want the full breakdown on how to map a hex grid to a specific room, our hexagon lights layout guide walks through the math.
Hexagon Lights vs Standard Ceiling Light Categories
Side by side, the differences are easier to see than to argue.
| Fixture Type | Coverage | CRI | Lifespan | Notes |
|---|---|---|---|---|
| Modular hexagon lights | Even, ceiling-wide | >90 | 50,000+ hr (rated) | One mounted system, no dark bands between rows |
| Recessed cans (LED retrofit) | Point coverage with gaps | 80 to 90 | 25,000 to 50,000 hr | 4 to 8 fixtures per typical room |
| LED shop lights / tubes | Linear strips | 80 | 30,000 to 50,000 hr | 2 to 4 fixtures, gaps between rows |
| Flush mount LED | Single circular zone | 80 | 25,000 hr | One fixture, limited reach beyond center |
| Fluorescent T8 (legacy) | Linear strips | 70 to 80 | 15,000 to 20,000 hr | Flicker and warm-up time, output drops fast |
The LED numbers list the upper-bound ranges. Older fluorescent T8 systems lose noticeable output after 5 years even when they are technically still lit, and that is part of why most shops have already cycled them out.
Where Modular Hex Ceiling Lights Work Best
We rank application fit by the gap between what a traditional fixture can deliver and what the space actually needs.
Garages

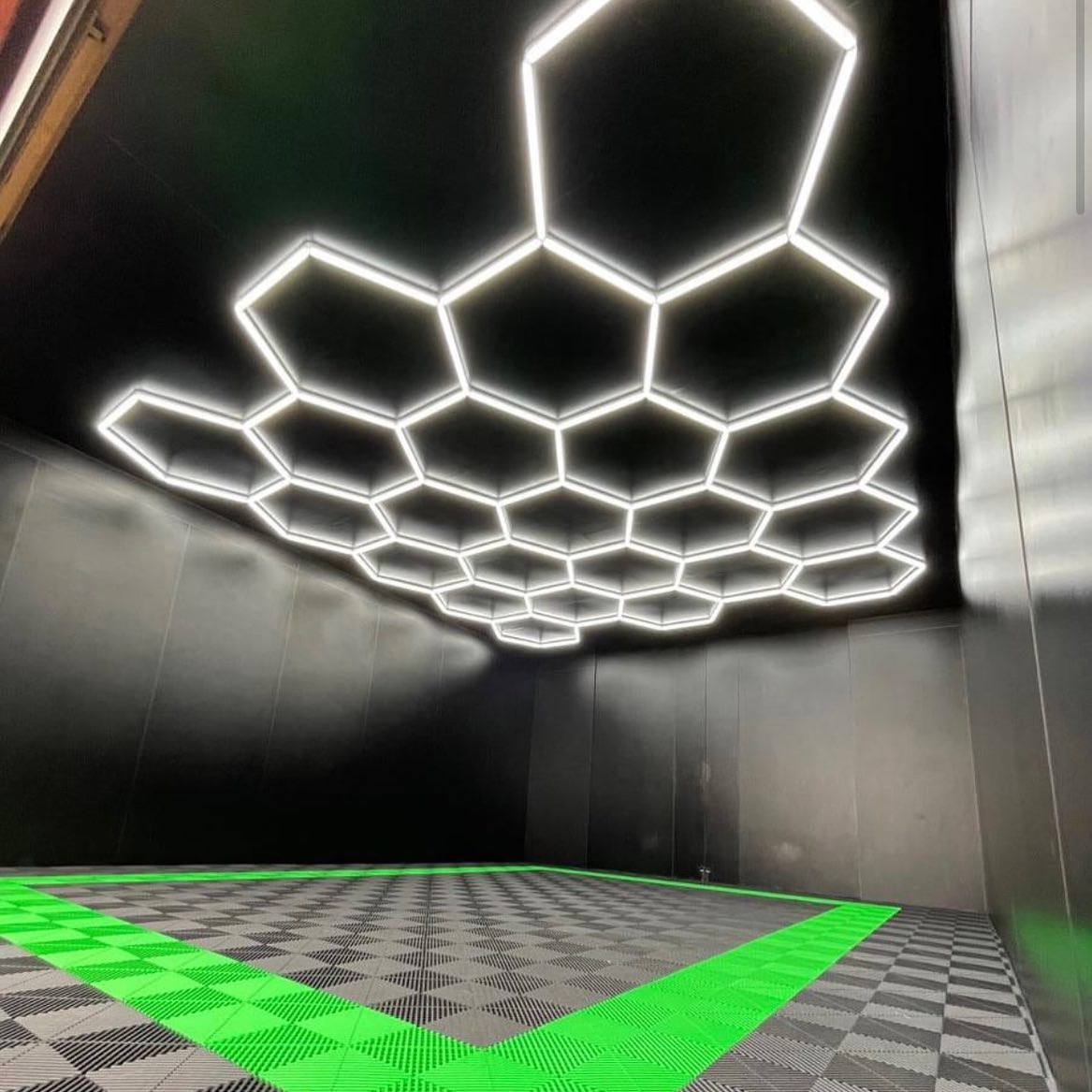

Garage ceilings are where the geometry argument hits hardest. A typical 2-car garage averages 400 to 500 sqft, ceiling height usually 8 to 10 ft, and the work being done underneath ranges from parking through wrench turning to detailing. Even DIY work needs 90 to 130 lumens per square foot, and traditional 2-fixture LED tube installs typically land below 70 lm per sqft once you account for the drop-off zones between fixtures. A 14-grid or 23-grid hex kit closes that gap and erases the shadow lines. Our hex lighting garage ceilings category is sized in this band.
Home gyms
A home gym usually splits between a power-rack zone and an open workout floor, and most owners hate the shadow that lands on the squat platform when a flush mount sits directly above the rack. Hex lights remove that shadow because they light the rectangle instead of the center. It is one of the most common conversions we are asked about, and our professional gym ceiling lights page collects the kits sized for typical home gym footprints.
Barber shops, detailing bays, workshops
Each of these spaces has the same fundamental requirement, which is continuous overhead coverage above a precision task. A barber needs to read the back of a fade. A detailer needs to spot a swirl. A woodworker needs to read grain in walnut. None of those tasks tolerate a 30 percent brightness drop-off between fixtures.
Sizing and Layout: What to Plan Before You Buy
The single most common install mistake we see is undersizing the kit. Owners buy a 5-grid because the budget feels safer, install it, and then realize the unlit corners of the ceiling are exactly where they spend half their time. The heuristic that holds up is simple. Go one size up from what you measure, and order a dimmable kit if you want to pull output back without sacrificing coverage at peak.
A 400 sqft 2-car garage at the DIY tier of 90 to 130 lm/sqft needs 36,000 to 52,000 lumens. A 14-grid kit (37,620 to 41,040 lm) covers the lower half of that band, and a 23-grid (58,080 to 63,360 lm) hits the top of it with headroom for the corner zones. A 500 sqft 3-car bay or detailing space lands at the 23-grid tier or above. A small home gym at 240 sqft lands at the 11-grid (30,360 to 33,120 lm) tier.
The one-size-up rule
You will not regret being brighter than the spec sheet says you need. You will regret the opposite within a week of install. If you are in doubt between two sizes of hexagon ceiling lights, take the larger kit, and order it as a dimmable version if you want to step the output down. Dimming is chosen at purchase and cannot be added to a standard kit later.
Installation and Wiring Notes
Modular hex kits run on standard 100 to 240V AC input, and the power connection depends on whether the kit is dimmable, not on its size. Smaller non-dimmable kits ship with a plug-in cord, so they are plug and play. Larger kits have two or more power inputs and ship with hardwire cables. If you would rather wire a standard kit to a wall switch, ask for hardwire cords in your order notes. Dimmable kits are hardwired to a wall switch, which is what steps them through their 30%, 60%, and 100% levels.
Plug-in kits need no electrician if you already have outlets in the right spots. Hardwired installs, including every dimmable kit, need a junction box and should be done by a licensed electrician to meet local electrical code. Either way, the fixture itself is surface-mounted on ceilings up to about 13 ft, or hung on an adjustable suspension kit above that. Our step-by-step walkthrough of how to install hexagon lights covers mounting and wiring step by step.
The 3-pin grounded connector design is built around reinforced snap-lock joints, which means the tubes stay seated through thermal cycles and seasonal humidity instead of working loose over a few summers. That is the failure mode cheaper plastic-housing kits hit first, and it is the reason we use aluminum housings throughout the line.
Before you mount
- Map the ceiling joist layout (usually 16 inch on center in US framing).
- Check whether your kit is plug-in or hardwired (larger kits and all dimmable kits are hardwired), and plan outlet or junction box positions before opening the box.
- If hardwiring, confirm the circuit has capacity for the kit and the work meets local code.
Most install regret is a planning issue, not a hardware issue.
Frequently Asked Questions
Are hexagon ceiling lights brighter than recessed cans?
Per kit, yes, by a wide margin. A 14-grid hex kit delivers 37,620 to 41,040 lumens across roughly 103 sqft of ceiling, while a typical four-can recessed layout covering similar floor area delivers a small fraction of that output. The bigger difference is continuous coverage versus discrete points. Cans light spots. Hex lights cover the whole ceiling plane.
Can I replace a flush mount with a hexagon ceiling kit?
Yes, in most setups. A dimmable kit, or a standard kit ordered with hardwire cords, can be wired by a licensed electrician into the junction box where the flush mount sat. Smaller standard kits ship with plug-in cords and run from nearby outlets instead. Confirm the circuit has capacity for the kit, and confirm the ceiling joist spacing supports the mounting footprint.
What color temperature should I pick for a garage or shop ceiling?
6500K daylight is our default recommendation for utility spaces, because it reads cleaner and helps you see detail in work, parts, and finishes. 5000K is acceptable for spaces shared with living areas. Below 5000K starts to drift warm and is better for residential bedrooms than for ceilings you actually work under. Color temperature is fixed at purchase across our standard line, so pick at order time.
How tall a ceiling can hexagon lights handle?
Surface mounting works on ceilings up to about 13 ft. Above that, light levels at the floor start to fall off noticeably, and we recommend either upsizing the kit one tier or hanging it on a suspension kit to bring the fixture down to a usable mounting height.
Do hexagon ceiling lights flicker?
No. The driver circuitry is rated flicker-free, which matters more than people realize during long install or work sessions. Flicker causes eye strain and headache symptoms during detailing and workshop tasks where the user spends multiple hours under the fixture.
How long do modular hex ceiling lights last?
The LED tubes are rated for 50,000+ hours. At 6 hours per day of average residential use, that works out to roughly 22 years under ideal operating conditions before output drops below useful levels, and if a single tube ever fails, it can be replaced on its own.
Where to Go from Here
If you want a ceiling that lights evenly edge to edge instead of from four discrete points, and you have spent more than a few minutes squinting at the dim corner of your garage or gym, the upgrade path is short. Pick hexagon ceiling lights sized one tier above what you measure. Plan the power points around your kit: outlets for a smaller plug-in kit, a junction box and wall switch for a larger or dimmable one. Mount it once.
To see the full modular lineup and current pricing, browse our honeycomb lights for ceilings starting point. The fixture has not been the bottleneck for years. The geometry has. A hex grid lights the actual room.
Product figures in this guide were checked against current HEXLED product specifications, September 2026. Hardwired installations must comply with local electrical code.
