Hexagon lights snap together into five basic patterns: a cluster over one zone, a line along a bench or a row of mirrors, a full grid for even light across the whole room, a bordered grid with a lit frame around the edge, and a wall mount for a feature wall. All five are built from the same tubes and connectors, so the pattern is a layout decision, not a different product. Size the pattern to the footprint first, choose brightness and color temperature second, and when in doubt, go one size up.
In this guide
Hexagon light patterns are the shapes you build when you snap modular hex tubes together on a ceiling or a wall: a tight cluster, a single line, a full grid, a bordered frame around the room, or a feature wall. The pattern you choose decides how bright a space feels, where the shadows land, and how finished the ceiling looks the moment you walk in. Pick the wrong one and a strong kit can still leave dark corners. Pick the right one and a plain two-car garage starts to read like a showroom.
Our team has spent over 13 years in the lighting industry, and in garages, gyms, and barber shops the same handful of layouts keep doing the heavy lifting. Most ceilings come down to one of three patterns from the hexagon lights collection: the cluster, the line, and the full grid. The bordered grid and the wall mount are variations on those three, and this guide covers all five.
This guide is for anyone planning a garage, home gym, barber shop or studio ceiling, or a feature wall. It covers the shapes and where each one belongs, while brightness targets and the kit-count math have their own guides, linked where they come up.
Why the hexagon shape makes such a clean ceiling pattern
A hexagon is one of only three regular shapes that tile a flat surface edge to edge with no gaps, a property mathematicians call hexagonal tiling. Bees use it for the same reason a ceiling benefits from it: maximum coverage with minimum wasted space. When the hex tubes lock together, they form a continuous web of light instead of isolated fixtures, so the beams overlap and fill the gaps between fixtures.
That overlap is the whole point. With a 180 degree spread on each tube, a connected hex grid throws light into the corners that a few scattered fixtures miss. Fewer seams. Fewer shadows. A ceiling that looks designed rather than patched together.
The core hexagon light patterns to know
The cluster
A cluster is a small honeycomb group, usually 3 to 7 hexes, dropped over one zone. Think a workbench, a reading nook, a reception desk, or a single retail display. Our 3 Cluster Grid covers a 5.6 ft by 5.6 ft footprint and puts out roughly 9,900 to 10,800 lumens, enough to make one corner pop without lighting the entire room. Clusters are the easiest pattern to start with, and the smaller non-dimmable kits ship with a plug-in cord.
The line
A line is a straight run of hexes that follows something: a workbench, a row of barber mirrors, or the length of a car. Our 5 Line Grid stretches 12.5 ft across at about 17,160 to 18,720 lumens, and the longer 11 Line Grid runs 17.4 ft for a full bench wall. In practice, the line pattern is the one detailers and barbers reach for, because it puts the brightest part of the beam exactly where the close work happens.
The full grid
The full grid is the showroom look. Hexagons fill most of the ceiling in one connected honeycomb, and the room reads as one bright, even surface. A 14 Grid covers 13.1 ft by 7.9 ft at roughly 37,620 to 41,040 lumens. Step up to the 23 Grid at 13.8 ft by 12.8 ft and about 58,080 to 63,360 lumens for a true two-car footprint. The 39 Grid reaches 17.4 ft by 16.4 ft for a large bay or a small shop floor. This is the pattern that makes the biggest first impression.
The bordered grid and centerpiece shapes
A bordered grid wraps a clean frame around the main honeycomb, which sharpens the edges and makes a smaller ceiling feel intentional. Our 15 Grid with Border covers 15.9 ft by 8 ft at about 60,720 to 66,240 lumens, and the same layout is sold with the border frame in blue, green, pink or red. Centerpiece shapes go the other way: a ring or a single bloom that anchors the room from the middle. The stock version is the 7 Circle Grid at 8.2 ft by 7.9 ft. These work best in spaces where the ceiling is part of the brand, like a barber shop or a studio, rather than a pure work garage. Anything beyond the stock shapes, from an L-shaped room to a logo outline, can be drawn up through our Custom Hexagon Lights page.
The footprints and light output below are the figures published on each kit's product page.
| Pattern | Best for | Example kit | Footprint | Light output |
|---|---|---|---|---|
| Cluster | Accent over one zone | 3 Cluster Grid | 5.6 ft x 5.6 ft | 9,900 to 10,800 lm |
| Line | Benches, mirror rows, car bays | 5 Line Grid | 12.5 ft x 4.3 ft | 17,160 to 18,720 lm |
| Full grid (mid) | One-car bay, home gym | 14 Grid | 13.1 ft x 7.9 ft | 37,620 to 41,040 lm |
| Full grid (large) | Two-car garage, shop floor | 23 Grid | 13.8 ft x 12.8 ft | 58,080 to 63,360 lm |
| Bordered grid | A lit frame around the ceiling | 15 Grid with Border | 15.9 ft x 8 ft | 60,720 to 66,240 lm |
| Centerpiece | Barber shops, studios, retail floors | 7 Circle Grid | 8.2 ft x 7.9 ft | 19,800 to 21,600 lm |
| Wall mount | Feature wall, office, back wall of a garage | Any kit, mounted on the wall | Same as on the ceiling | Same as the kit |

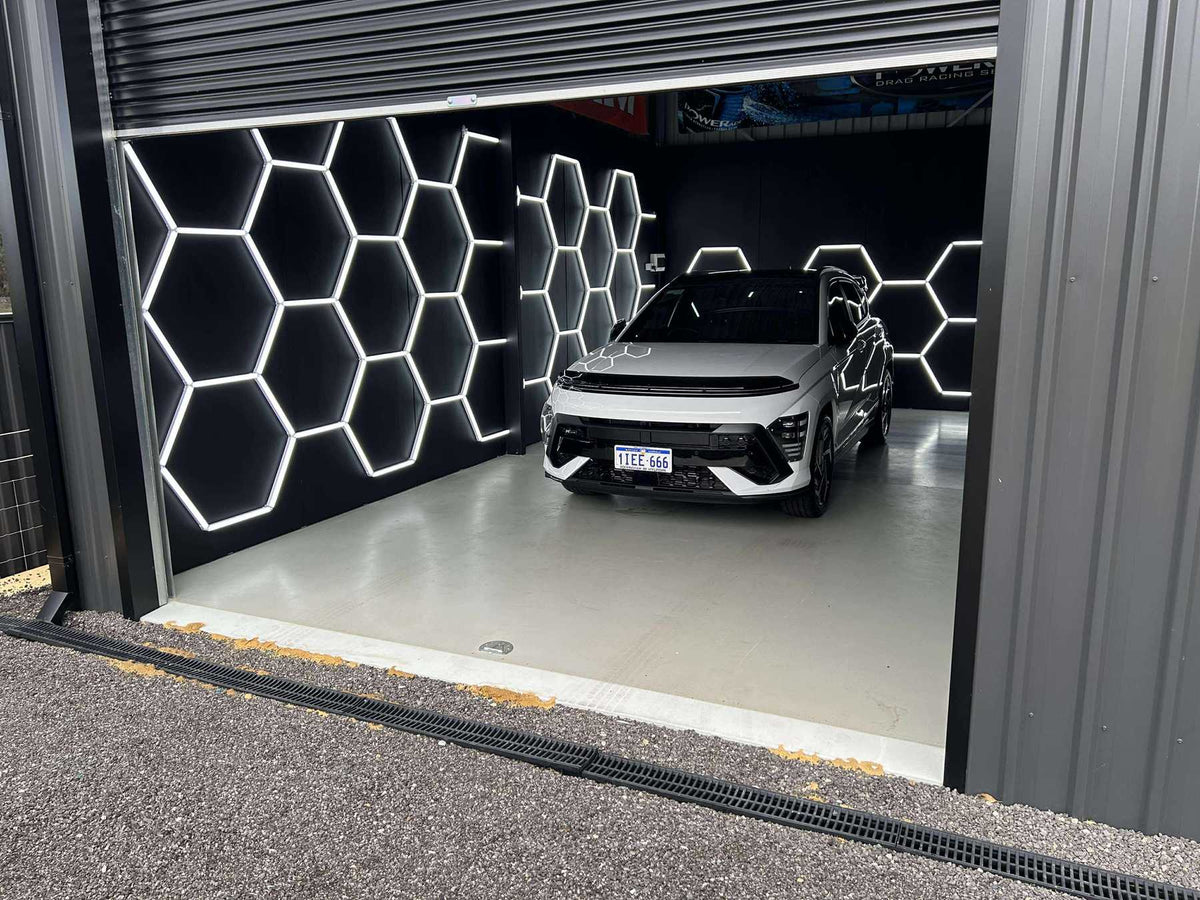

Hexagon lights on a wall
Every pattern above also works on a wall. HEXLED kits mount on walls or ceilings, or hang from suspension wires, and the tubes and connectors are the same whichever way you go, so a wall grid is a ceiling kit turned 90 degrees. Nothing about the pattern changes. A 5 Line Grid is still 12.5 ft long, and a 3 Cluster Grid still covers 5.6 ft by 5.6 ft.
A wall mount tends to be the right call in three situations.
- The ceiling is already taken by a door opener, a lift or ductwork.
- You want the shape seen head-on from the driveway or the doorway, not from underneath.
- The room has a feature wall that does the talking, such as a reception area, an office or a showroom.
Our team usually points wall-mount customers to a cluster or a line, since a wall rarely has 13 ft of clear, flat space the way a ceiling does. One more thing to know. A wall grid is an accent, because the 180 degree beam spreads out from the wall rather than down onto the floor, so keep the main work light overhead and let the wall be the feature.
Matching a pattern to your room
The first hexagon grids our team saw were in detailing bays and showrooms. Now most of the patterns we plan are home garages and gyms, with barber shops close behind, so those three rooms get their own notes.

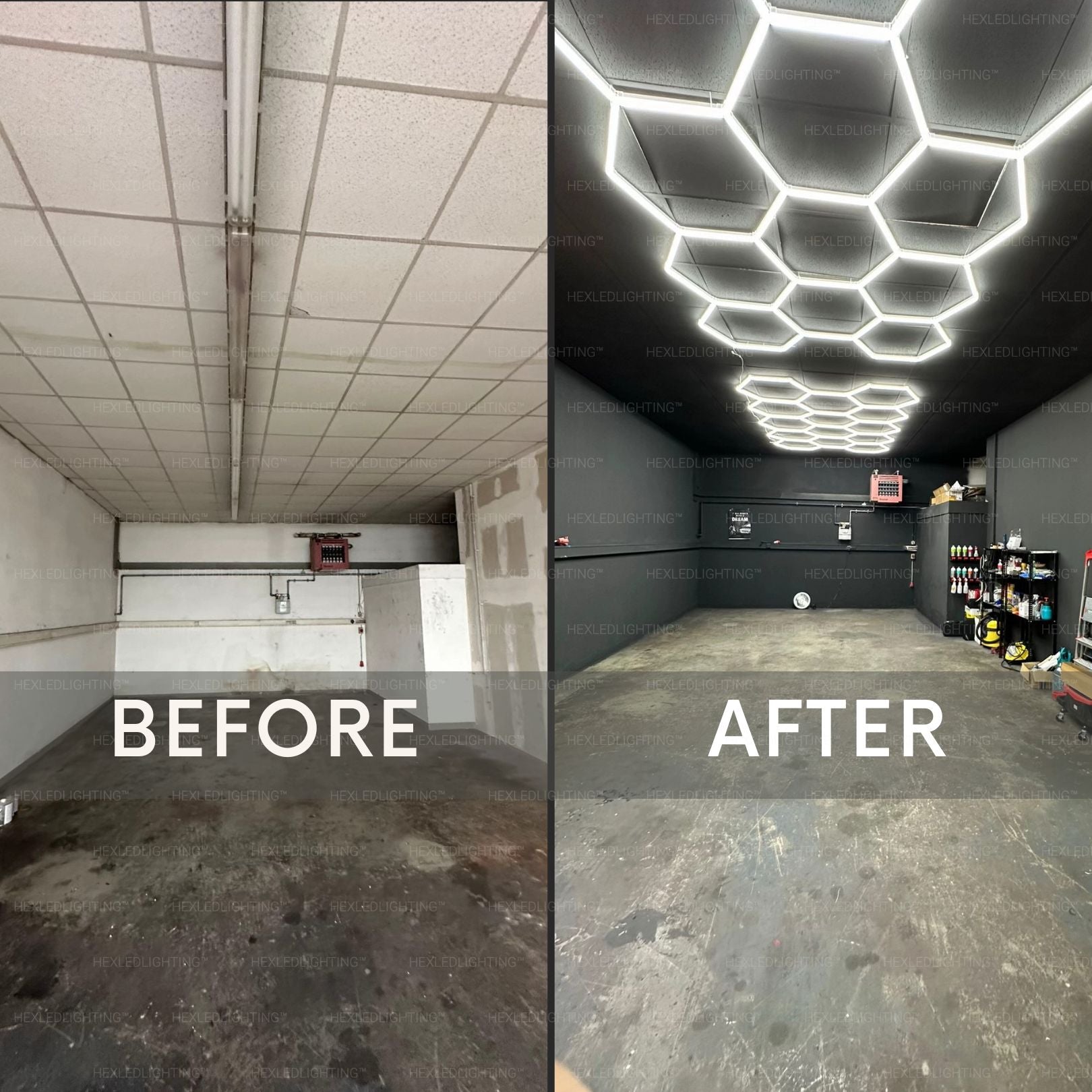

Garage ceilings
Garages are where the full grid earns its keep. Plan it by the bay: one bay usually takes a 5 to 14 grid, a two-car space wants a 14 to 23 grid, and full wall-to-wall coverage runs 23 to 39 or a custom layout. Center the grid between the door and the back wall so the light reaches the trunk and the workbench at the same time. If the opener rail splits the ceiling, run one grid per bay instead of one big block. And if a second pattern is likely later, say a line over a bench next year, leave that zone clear now instead of centering one grid on the whole ceiling.
Ceiling color changes how a pattern reads, too. Hexagon lights on a black ceiling look sharp and graphic, because the dark paint drops away and the lit tubes carry the whole shape. On white drywall the tubes blend in more when they are switched off, so the same pattern looks quieter during the day.
Here is the trap we've seen most often. Someone buys a single small cluster, centers it on a 20 ft ceiling, and the corners stay dark. The kit was fine. The pattern was too small for the footprint. That is why garage hexagon lighting that stays bright across the whole bay starts with sizing the grid to the room, not to the budget.
Home gyms
A home gym wants even, low-glare overhead light, since you spend half the session looking up at the ceiling from a bench. Center a full grid over the training floor, then add a short line over a mirror wall if you film or check form. A single 5 Grid disappears in a 16 ft by 16 ft gym, so size up to a 9 or 14 grid for that footprint. Most home gym owners pick 5000K for a crisp neutral, while commercial gyms usually run 6500K for the brightest daylight feel. The same logic drives our hexagon gym lights ideas, where the grid almost always centers over the rack rather than the doorway. One Austin customer of ours runs a private garage as a motorcycle bay on one side and a home gym on the other, which is the classic case for one pattern per zone rather than one grid for the whole ceiling.
Barber shops and salons
Barber work lives and dies on even light at the chair. Run a line of hexes over the mirror stations so each face gets flat, even light with no harsh shadow under the brow. A CRI (color rendering index) above 90 keeps skin tones and hair color true, which matters when a client is judging a fade in the mirror. Then add a small cluster or a centerpiece at reception to set the tone the moment someone walks in. A Los Angeles barber shop we supplied runs a Large 17 Grid, a 20.2 ft by 9.8 ft footprint, which shows how far the full grid scales once a shop has the ceiling for it.
Spacing, brightness, and keeping it even
The pattern sets the look. The spacing sets the result. As a working target, aim for roughly 90 to 130 lumens per square foot for general garage and DIY use, up to 180 for gyms, barber shops, and home detailing, and 200 to 360 for professional detailing and paint correction. Our breakdown of how many lumens a garage needs covers those tiers. The Illuminating Engineering Society publishes recommended light levels by task if you want to dial it in further. For the exact grid spacing and ceiling math, our hexagon lights layout guide walks through measurements step by step.
One more thing to settle before you order: color temperature is chosen when you order and fixed after install. The four options are 3000K, 4000K, 5000K, and 6500K. For a home garage and a home gym we point people to 5000K, and to 6500K for a commercial garage, detailing bay, showroom, workshop or commercial gym, since the cooler light keeps the space feeling alert and the pattern crisp. Choose it up front.
A quick planning checklist before you buy
Our team runs every pattern through the same job, pattern, size order. Decide the job, pick the pattern that does it, then size it to the footprint.
- Measure the ceiling in feet, length by width, and note beams, vents, and the door swing. For a wall mount, measure the clear wall the same way.
- Decide the job: accent (cluster), task light (line), full coverage (grid), a lit edge (border), or a feature wall (wall mount).
- Size the grid to the footprint and go one size up. If you want to step it down at times, order the dimmable version, which switches between 30%, 60% and 100% from a standard wall switch.
- Pick the color temperature now, because it is chosen when you order and cannot be changed later.
- Confirm mounting. Kits surface mount on ceilings up to about 13 ft, hang on suspension wires (3.3 ft or 9.8 ft) above that or under a sloped ceiling, and mount on walls. Our guide on how to install hexagon lights covers the steps.
- Check the power connection. Smaller non-dimmable kits ship with a plug-in cord. Larger kits and all dimmable kits ship with hardwire cables, so have a licensed electrician connect those.
What sets a HEXLED pattern apart
A honeycomb pattern only looks premium if the hardware holds up. HEXLED hex kits use an aluminum housing instead of thin plastic, a 3-pin grounded snap-lock connector instead of a loose 2-pin push fit, and a CRI above 90 for accurate color. The tubes run flicker-free for long sessions, spread evenly to soften shadows, carry an IP54 dust and splash rating, and are rated for 50,000+ hours. Every tube has its own driver, so if one fails the rest of the pattern stays lit and you replace that one tube. The pattern is the design. The build is what keeps it looking sharp years in.
Next Steps
Job, pattern, size, in that order. Browse our lighting honeycomb layouts and pick the grid that fits your footprint, your brightness target, and the look you want from the doorway. If you want a hand sizing it, send your ceiling or wall dimensions and we will sketch a pattern that fits.
About this update, October 2026. We added the wall-mount pattern, the bordered and centerpiece kits with their footprints, a mounting and power step in the checklist, and brought the color temperature advice in line with our product pages. Kit footprints and lumen figures were checked against the product pages.
Frequently Asked Questions
What is the best hexagon light pattern for a garage?
For most garages, a full grid is the best hexagon light pattern because it spreads light evenly across the bay instead of lighting only the center. Size it to the footprint of the bay, since a grid that is too small leaves the corners dark even when the kit itself is bright enough.
How many hexagons do I need for a two-car garage?
Most two-car garages need a 14 to 23 grid, depending on ceiling size, door position, and whether you want task lighting or full showroom-style coverage. One garage bay usually takes a 5 to 14 grid, and a 23 to 39 grid covers a large bay or a small shop. Measure the ceiling in feet first, then match the kit.
What is the most popular hexagon light pattern?
The full grid is the most common choice for garages and home gyms because it lights the whole room evenly. The line pattern is the favorite for benches, detailing bays, and barber mirror walls, where the work happens in one strip.
Can I create a custom hexagon shape?
Yes. The system is modular, so clusters, lines, grids, and borders all snap together from the same hex tubes. Odd ceilings, sloped roofs, and brand-specific centerpieces can be built as a custom layout when a stock kit does not fit.
Do hexagon light patterns have to go on the ceiling?
No. HEXLED kits mount on walls or ceilings, or hang from suspension wires, so any pattern can go on a feature wall, behind a parked car or beside a desk. For task lighting, keep the main grid overhead so the 180 degree beam reaches the whole floor, and treat the wall grid as the accent.
What color temperature looks best for a hex pattern?
For home garages and home gyms we usually suggest 5000K, and 6500K for workshops, detailing bays, commercial garages, showrooms and commercial gyms, with warmer 3000K for lounges. Color temperature is chosen when you order and does not change afterward, so decide based on the room first.
Will a hexagon pattern leave shadows?
Sized correctly, very few. The overlapping 180 degree beams and even distribution are what reduce harsh shadows. Shadows usually appear when the pattern is too small for the footprint, which is a sizing problem rather than a fixture problem.
