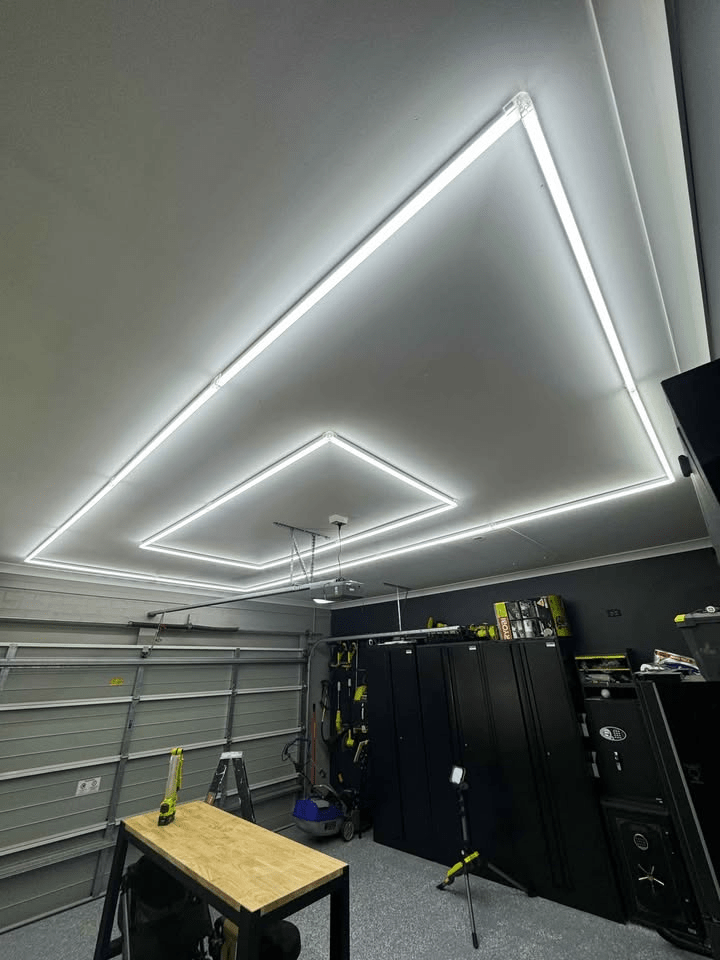

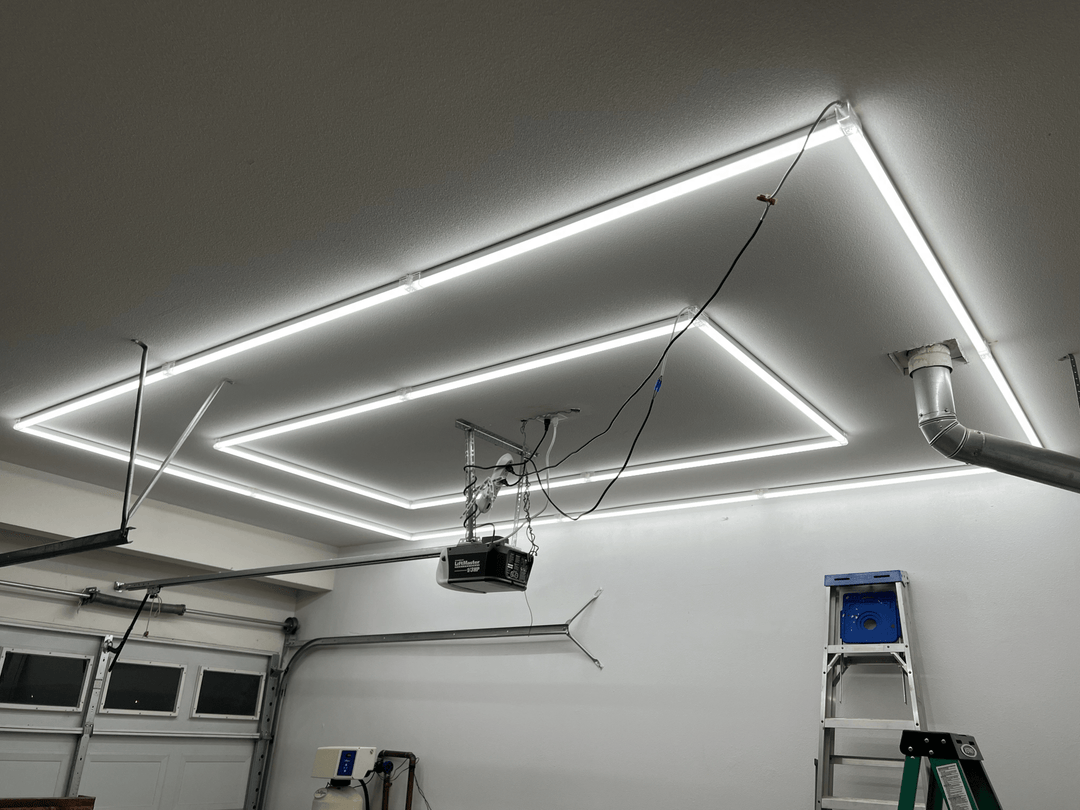

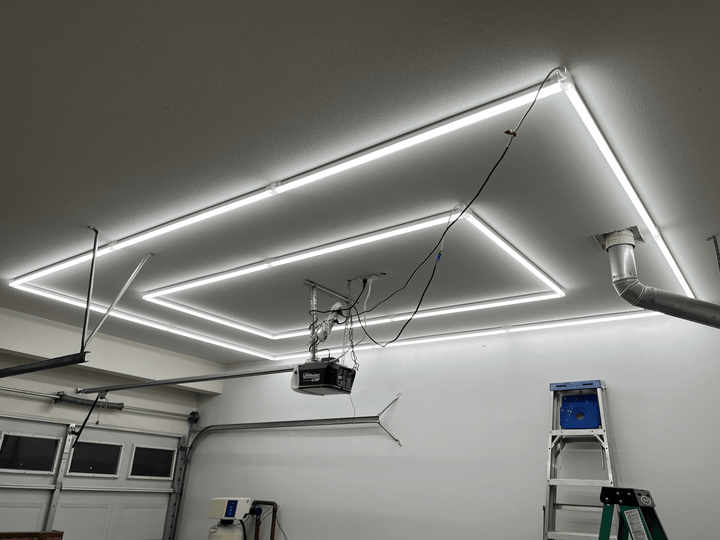

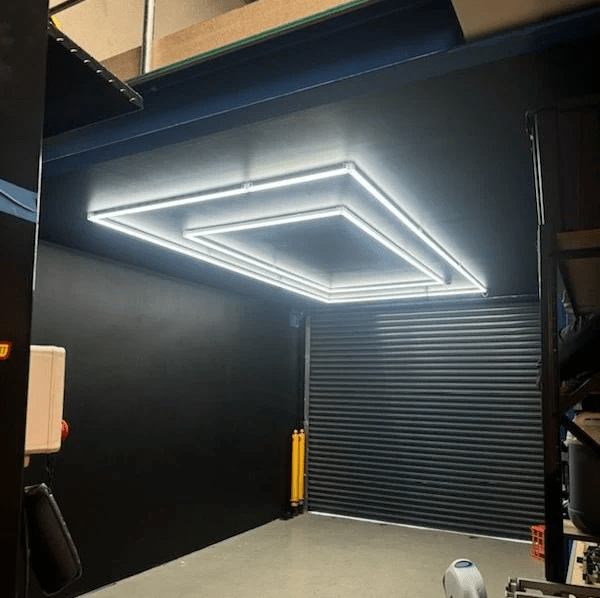

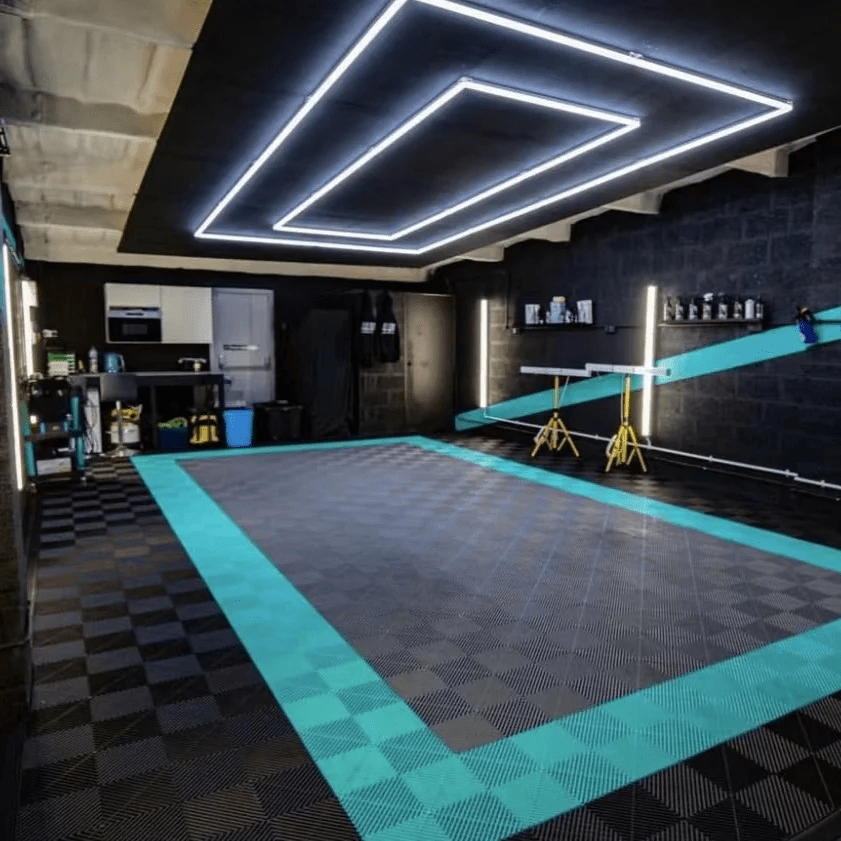

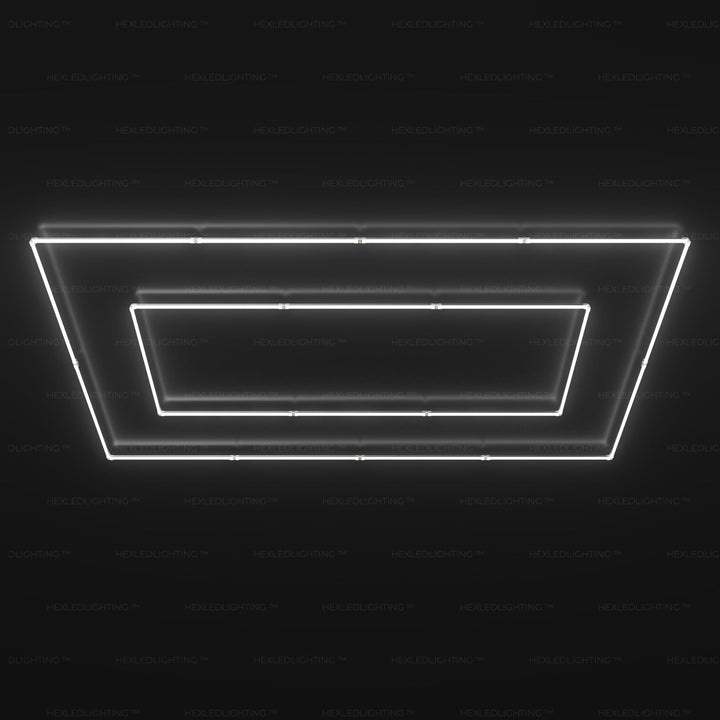

| System Dimensions | 15.7’ x 7.9’ | 4.8m x 2.4m |
| Tube Length | 4' | 120 cm |
| Material | Lightweight high-density polycarbonate |
| CRI | >90 |
| Luminous Efficiency | 120 lm/W |
| Working Lifetime | 50,000+ hours |
| Ingress Protection | IP54 (dust and splash resistant) |
| Input Voltage | 100-240V AC |
| Color Temperature | 6500K / 5000K / 4000K / 3000K |
| Beam Angle | 180° |
| Package Includes | Lighting tubes, connectors, power cables, mounting hardware, installation manual |
- 6500K Daylight - Brightest daylight. Ideal for detailing, barbershops, workshops, and garages with DIY or hands-on tasks. Most Popular
- 5000K Cool White - Clean daylight. Great for everyday garage use, parking, storage, and home gyms.
- 4000K Neutral White - Versatile for offices, retail, and mixed-use spaces.
- 3000K Warm White - Best for relaxed environments, showrooms, and retail displays.
Not sure? Go with 5000K or 6500K.
Our installation instructions are available [HERE].
Each HEXLED lighting kit is designed for easy setup. Simply assemble, secure, and mount. Kits can be mounted on walls, ceilings, or suspended (See our Ceiling Suspension Wire Kit)
Every kit comes with a 5 ft (1.5 m) power cord and a standard plug, allowing you to connect directly to a power outlet once assembled. If hardwiring is preferred, the power cord is also prepared for direct wiring. Hardwire installation must be completed by a licensed electrician.
Installation typically takes 2 to 4 hours depending on kit size. A printed installation guide is included in every kit. For any questions, contact us at info@hexledlighting.com.
Shipping
- Order Processing: 2-3 business days
- Transit Time: 7-9 business days after dispatch
- Tracking: We ship with trusted couriers (UPS, DHL, FedEx, etc.). A tracking number will be provided as soon as your order ships.
Warranty
- Residential Use: 4-Year Limited Warranty
- Commercial Use: 2-Year Limited Warranty
Our warranty covers defects in materials and workmanship under normal use. If you experience any issues, contact us at info@hexledlighting.com with your order number and a description of the problem.
COMPLETE YOUR SETUP
WHY choose hexled
❌ DIM & UNEVEN LIGHTING
Tired of working under dull, patchy light?
Old fluorescent tubes leave shadows everywhere — makes even simple tasks frustrating.
✅ UPGRADE TO HEXLED – DESIGNED TO TRANSFORM.
One upgrade, total transformation.
Bright, clean, shadow-free lighting that makes your space look amazing and work better.
HEXLED vs Cheap Alternatives
See the difference that premium engineering makes
Housing Material
HEXLED
Aluminum dissipates heat fast, extending LED lifespan and reducing light decay
Cheap Alternative
Plastic traps heat inside, causing rapid light decay and shorter lifespan
Connection Design
HEXLED
Snap-lock holds tubes firmly in place, no sagging or collapse
Cheap Alternative
Push-fit relies on friction, loosens from heat and risks tube detachment
Tube Interface
HEXLED
3-pin grounded design, safer and meets commercial-grade requirements
Cheap Alternative
2-pin only, no ground wire, does not meet commercial safety standards
Safety Design
HEXLED
Built-in fuse with overload and short-circuit protection
Cheap Alternative
No fuse or overload protection, exposed contacts create direct shock risk
Power Cable
HEXLED
Certified 3-pin cable with flame-retardant insulation, built for long-term safety
Cheap Alternative
Uncertified, thin insulation that hardens and cracks, fire and shock hazard
Connector
HEXLED
Ultrasonic die-cast body with copper pins, 5mm+ insulated clearance meets international standards
Cheap Alternative
Screw-assembled 2-pin with exposed pins, no safety clearance
FAQs
Signature grid lights use a linear layout rather than a hexagon shape. The right size depends on your ceiling dimensions and the coverage pattern you want. Each product listing shows the exact area in feet. For help planning a grid layout, visit our Hexagon Lights Layout Guide or contact us for a custom layout recommendation.
Our LED garage lighting kits come with a plug-and-play connector system. Whether you’re mounting them on drywall or concrete ceilings, the DIY-friendly installation process allows most users to install the lights within an few hour.
Our hexagon garage lighting systems deliver ultra-bright illumination with 120–130 lumens per watt. Designed for professional spaces, they offer powerful brightness with no shadows and no flickering.
Yes. Our standard hex lights are available in multiple color temperatures—3000K (warm white), 4000K (neutral white), 5000K, and 6500K (cool white)—to suit different environments and preferences.
Our standard hexagon lights are not dimmable. However, if you’re looking for lighting with adjustable brightness, check out our Dimmable Hex Lights Collection.
For vibrant colors and effects, explore our RGB Hexagon LED Lights, which support remote control, animations, and full-spectrum lighting—perfect for gaming rooms, bars or content creators.
HEXLED LIGHTING are CE / UL / RoHS / SAA certified, IP54 dust-resistant. Rated 50,000 h (~17 years at 8 h/day) and backed by a 48-month warranty.
Each hexagon lighting kit includes premium aluminum LED light tubes, connectors, mounting accessories, installation guide and a power cable. Depending on the size selected, your kit will contain all necessary parts for installation.
Absolutely! We offer custom hexagon lighting solutions tailored to your specific space, whether it’s a garage, studio, or commercial setting. Simply contact us with your dimensions or design ideas, and our team will help you create a layout that fits your needs perfectly.
Hexagon LED lights are commonly used in garages, workshops, gyms, and studios to create bright, shadow-free, and modern lighting. They’re ideal for car detailing, gaming setups, and content creation spaces.
Yes. The 6500 K, CRI > 90 tubes create a seamless LED lighting grid that throws light from every angle. No “hot spots” or dark corners—perfect for detailing, filming or showroom display.
Signature Series uses unique geometric patterns (diamond grid, gridline, star, linear frame) instead of hexagonal shapes. Each design creates a distinctive ceiling layout.
No. Signature Series uses different tube lengths and connectors. They are separate systems.
Plug-in: no, just plug into a standard wall outlet. Hardwired: yes, a licensed electrician is required.
Only that tube goes dark, the rest stays on. Just swap it out. We offer a Replacement Tube Pack in our accessories collection.
