For paint correction, color accuracy matters more than raw brightness. A light with a CRI above 90 at a 6500K daylight color temperature shows paint in its true color, so oxidation, yellowing and tint shifts read at the bench the way they will in the driveway, while swirls depend on reflections rather than lumens. HEXLED white kits score above 90 on CRI, and we recommend 6500K for detailing.
In this guide
You spent the money on bright lights. The bay glows like a showroom. Then the customer rolls the old red truck you just corrected into the sun, and one corner of the hood still looks chalky. The cause is rarely a shortage of lumens. Under a light that renders red poorly, healthy red looks duller than it is, so the oxidation beside it never stood out.
This guide is for anyone correcting paint, from a home garage to a multi-bay shop, and covers the two color specs, CRI and color temperature. Kit sizes and layout are in our auto detailing lighting guide, and polishing technique is outside what our team advises on. We sell high-CRI detailing lights, so read this as a seller's guide, though every check below works on any brand's light.
The Brightness Trap
Brightness feels like the answer because it is easy to compare. That logic breaks once the light is not showing you the paint's true color.
A budget shop light rated CRI 80 usually comes up short in deep red, and doubling its output does not fix that. You get a brighter version of the same colors, plus glare off the clear coat that flattens the contrast you are looking for.
Brightness gets you to lit. Accuracy gets you to sure.
How a Defect Actually Becomes Visible
Paint defects come in two kinds, texture and color, and each shows up differently.
Texture defects show through reflection
Swirls, holograms and haze are surface damage in the clear coat.
- A swirl mark is a web of fine scratches.
- A hologram, or buffer trail, is a band of micro-marring left by a rotary polisher.
- Haze is an even finer, milky marring.
The marks scatter light, so they glow around the reflection of a bright source, and the smaller and more intense the source, the sharper they show. The sun is the extreme case, a tiny, intense point, which is why swirls that looked gone under a broad, diffuse light come back outside. Color quality has little to do with it. What helps is a reflection on every surface, from a ceiling-wide grid of narrow tubes, plus a handheld light up close.
Color defects show through color
Color defects change the paint's color, not its surface. Our team has spent over 13 years in the lighting industry, and these three are the ones a light's color quality decides.
- Oxidation left on single-stage paint (no separate clear coat), chalky and faded, most often on reds
- Yellowing on white paint or an aging clear coat
- A tint step across a blended repair
They read clearly under a light that renders color faithfully and sits near daylight, and they hide under one that does not.
| Paint color | What hides most easily | What the light has to do |
|---|---|---|
| Black or dark gloss | Swirls and holograms (texture) | Sharp reflections on every surface, plus a handheld check. CRI does little here. |
| White, silver or light metallic | Yellowing and a cream cast (color), plus swirls (texture) | 6500K daylight white with a CRI above 90, plus a handheld check for swirls |
| Red, candy or single-stage | Oxidation and fading left behind (color) | A CRI above 90 with strong saturated-red rendering, the R9 sample below |
CRI, and Why the Number on the Box Is Not the Whole Story
What CRI actually measures
The color rendering index (CRI), reported as Ra, is a method from the International Commission on Illumination (CIE), first designed in 1965, with the version in use dating from 1974. It scores how faithfully a light renders eight low-saturation reference colors against a reference light of the same color temperature, with 100 as a perfect match. Typical white LEDs sit at CRI 80 or slightly above. Fine for washing a car. Not fine for judging whether the oxidation on a hood is gone.
The R9 blind spot
Ra leaves out R9, the saturated deep red sample, so a light can post a respectable Ra and still render reds poorly, the exact failure on red and single-stage paint. If reds matter to you, ask for R9 as well.
TM-30, the newer method
In 2015 the Illuminating Engineering Society published TM-30, now an American National Standard (ANSI/IES TM-30-24), which scores a light against 99 color samples and reports a fidelity index (Rf) and a gamut index (Rg). The US Department of Energy's TM-30 FAQ notes it is increasingly used by lighting producers and specifiers, so expect Rf and Rg next to CRI on more spec sheets.
Every HEXLED white hexagon tube scores above 90 on CRI, well past the CRI 80 typical of budget kits.
Color Temperature Is a Color Decision, Not a Brightness One
Color temperature, measured in Kelvin, is the warmth or coolness of white light. It is a color-reading choice, because it sets how close your bay comes to daylight.
6500K sits close to D65, the standard daylight reference used in color work, so white and silver read true. Drop to 3000K and a white hood looks cream, while a yellowed one looks normal. A high-CRI light near daylight also guards against metamerism, where two colors match under one light and differ under another, which is how a blend that looked right under warm shop light shows a step in the sun.
Color temperature on a HEXLED white kit is chosen at order (3000K, 4000K, 5000K or 6500K) and fixed after install. Detailers usually ask our team about lumens first. We ask back about color temperature, because it cannot be changed later. For a bay where correction is the point, order 6500K. For a home garage used mostly for everyday DIY, 5000K is the usual pick, though home detailers who get serious about paint tend to wish they had chosen 6500K.
How to Judge Color Accuracy Before You Buy
Spec sheets list Ra and stop. Our team uses three checks before signing off on a detailing layout.
- Ask for the CRI, then for R9 or a TM-30 report. A single number leaves deep-red rendering unknown.
- Keep a known reference in the bay. A paint chip set or a hood you have already corrected shows fast whether hues read true.
- Run the driveway test, and read it correctly. Roll a corrected car into open sun. New swirls are a reflection problem, the sun's point source catching what a broad, diffuse light softens, so add a handheld check. A faded patch, yellow cast or tint step is a color problem, and that is the light's CRI and color temperature talking.
When Brightness Still Matters
Accuracy first does not mean dim. For serious correction, our team's professional detailing tier is 200 to 360 lumens per square foot, with the kit ladder in our guide to how many lumens a garage needs. Lock the color specs first, then scale output to the floor area. A blinding, color-poor grid is a redo you have not found yet.
Next Steps
So pick accuracy first and brightness second. Settle a CRI above 90 with strong red rendering and a 6500K daylight balance before you chase lumens. The HEXLED team gives the same color advice to every detailing customer, from a Toronto detailing garage running an 8 Grid to detailing customers in Phoenix. Compare kit sizes among our professional detailing lights, and catch the defect at the bench, not in the driveway.

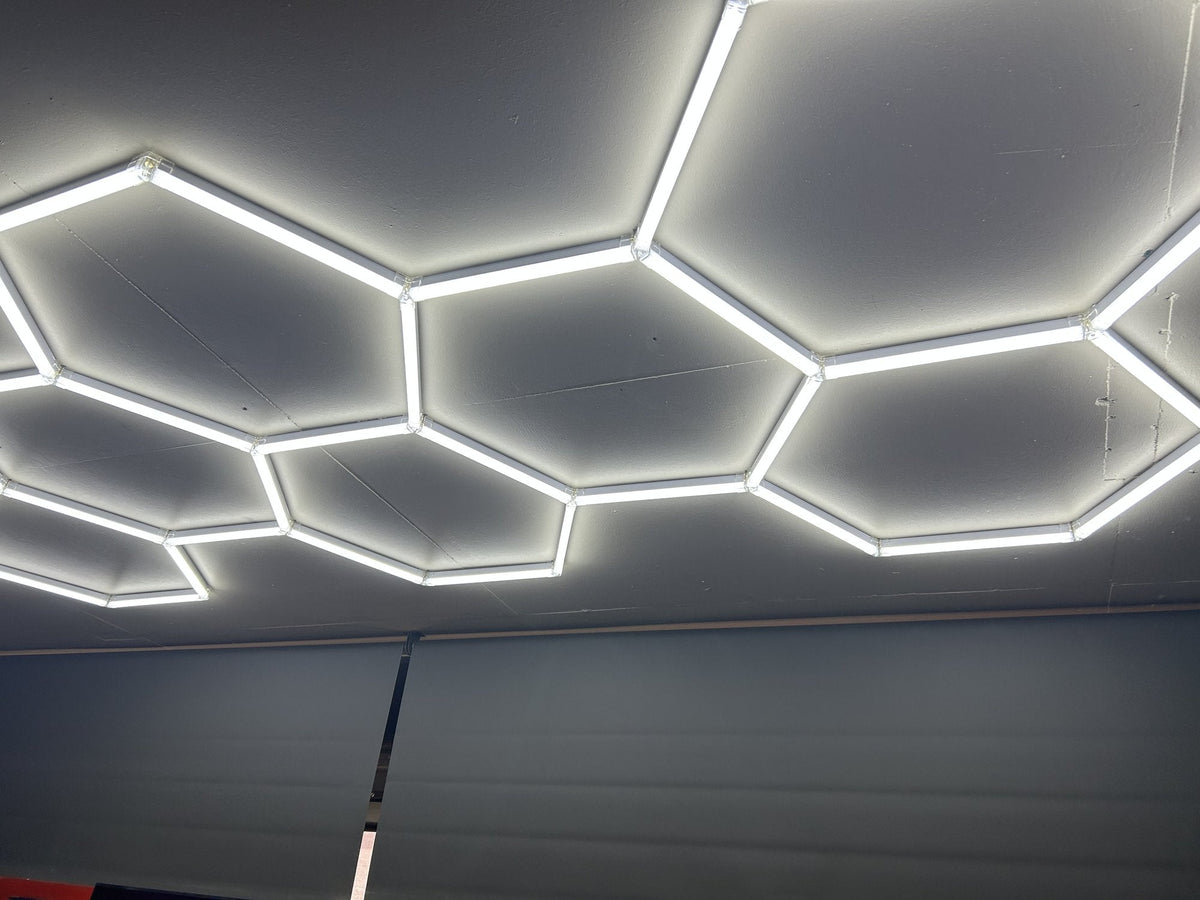

About this update, . We corrected why swirls come back in sunlight (the sun's point source, not color rendering), split defects into texture and color, and replaced the stock photo with installation photos.
Frequently Asked Questions
Does a brighter light help me see paint defects?
Only up to a point. Past the professional range, more output adds glare rather than detail. Swirls show through reflections and oxidation through accurate color, so angle, CRI and color temperature decide more than lumens.
What CRI do I need for paint correction?
A CRI above 90, plus good deep-red rendering (R9). CRI 80 lights are fine for washing but unreliable for judging color.
What color temperature is best for paint correction?
6500K, close to D65, the daylight reference used in color work, so the finish matches what the customer sees outside. 5000K suits a home garage where correction is occasional.
Why do swirls vanish under my shop lights but show up in the sun?
Because the sun is a small, intense point source. Swirls are fine scratches that glow around the reflection of a compact bright source, which a broad, diffuse shop light softens. Color rendering matters for oxidation and tint, not swirls.
Can I change the color temperature of hexagon lights after installing them?
No. HEXLED white kits are ordered in 3000K, 4000K, 5000K or 6500K and stay at that color temperature after install, so order the one you will inspect under, 6500K for detailing.
